Reporting

The library comes with two implementations for reporting.

Basic Reporter

The ProgressReporter implements basic reporting using the Python logging package. Logging is done at the INFO level.

The setup_logging() function is provided to configure logging to both the console and an optional file.

The reporter is instantiated and configured inside the ETLContext constructor and can be retrieved from there.

As part of the ETL pipeline setup, a call to register_tasks() must be made, passing in the root of the task tree:

context.reporter.register_tasks(all_group)

This will log a tree representation of the tasks:

2025-02-09 13:33:42,696 - INFO -
└──main
   ├──schema-init
   │  └──SchemaTask
   ├──csv-loading
   │  ├──LoadAgenciesTask('mdb-2333-202412230030/agency.txt')
   │  ├──LoadRoutesTask('mdb-2333-202412230030/routes.txt')
   │  ├──LoadStopsTask('mdb-2333-202412230030/stops.txt')
   │  ├──LoadTripsTask('mdb-2333-202412230030/trips.txt')
   │  ├──LoadCalendarTask('mdb-2333-202412230030/calendar.txt')
   │  └──LoadStopTimesTask('mdb-2333-202412230030/stop_times.txt')
   └──post-processing
      └──CreateSequenceTask

The Task is responsible for informing the reporter (from the context) about status changes, such as task start and completion. This occurs before and after calls to run_internal(), ensuring that task implementations do not need to handle this manually.

At the end of each Task, the reporter logs summary messages such as:

2025-02-09 13:43:41,535 - INFO -  finished LoadStopTimesTask('mdb-2333-202412230030/stop_times.txt') in 0:01:03.138719 with success: True
+--------------+------------------+------------------+----------------+-------------------------+-----------------+
|   valid_rows |   csv_lines_read |   properties_set |   labels_added |   relationships_created |   nodes_created |
|--------------+------------------+------------------+----------------+-------------------------+-----------------|
|      1898816 |          1898816 |          3394080 |         678816 |                 1357632 |          678816 |
+--------------+------------------+------------------+----------------+-------------------------+-----------------+

To maintain readability, only summary information with non-zero values is reported.

Neo4j Reporter

The Neo4jProgressReporter extends the basic ProgressReporter, allowing each ETL pipeline run to be persisted in a Neo4j database.

Which implementation is used depends on the existence of the key REPORTER_DATABASE in context.env. This env dictionary should be built from the process environment.

If the REPORTER_DATABASE key exists, its value determines the database where ETL status information is stored, enabling separation between application data and ETL metadata.

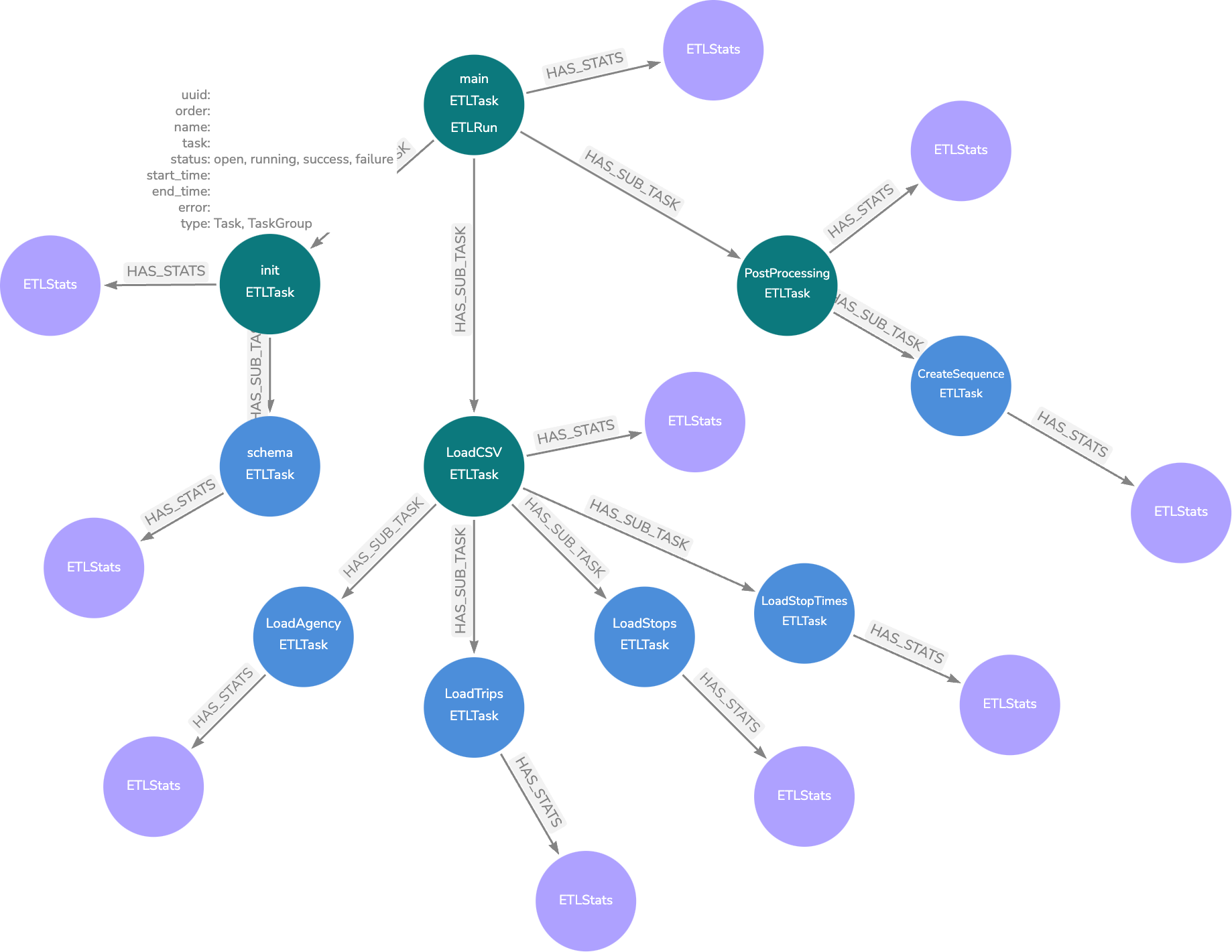

Each ETL run creates an independent subgraph. The following diagram illustrates the structure of such a subgraph for a GTFS example:

Green nodes represent Task, while blue nodes represent TaskGroup.

ETLStats nodes are created upon task completion and store summary information. For tasks with child tasks, the ETLStats node aggregates data from all children. To view the overall summary for a pipeline run, refer to the ETLStats node attached to the ETLRun node.

Unlike the Basic Reporter, which only logs non-zero values, ETLStats nodes store all summary data, including zero values.

The project’s root directory includes a dashboard.json file for use with Neodash Dashboard Builder.

Attention

The Neo4j reporter does not automatically create constraints for metadata. To manually create the constraint, execute the following Cypher query:

CREATE CONSTRAINT IF NOT EXISTS FOR (n:ETLTask)
    REQUIRE n.uuid IS UNIQUE

Alternatively, the CreateReportingConstraintsTask can be added at the start of a pipeline to ensure the constraint is created if it does not exist.

Additionally, CLI provides details on using the command-line interface to query and manage ETL run history.

Instrumentation

The library provides optional runtime instrumentation focused on throughput and resource efficiency. Its purpose is to make tuning decisions measurable, for example when adjusting batch_size, table_size, max_workers or prefetch.

Instrumentation is disabled by default and only active when explicitly enabled. When disabled, no instrumentation rows are written.

Current output mode is none and csv. The writer is configured by ETLContext.

Each event writen includes the task name and ETL run uuid.

Enable instrumentation via environment variables:

ETL_LIB_INSTRUMENT=csv
ETL_LIB_INSTRUMENT_CSV_PATH=etl_instrumentation.csv
ETL_LIB_INSTRUMENT_SAMPLE=1

Written fields include:

• ts: UTC timestamp when the event was recorded.

• run_id: ETL run UUID, allowing comparison between repeated imports.

• task_uuid and task_name: task identity for attribution.

• event_type: instrumentation event category.

• dt_ms and rows: primary latency and throughput indicators.

• optional event-specific fields such as wave_size, buckets, max_workers, prefetch, table_size, bucket_min, bucket_p50, bucket_max and buffered_before.

To keep the dataset focused, instrumentation is intended for processing and sink performance events rather than generic task lifecycle logging.

Current event mapping:

Instrumentation Events

Event Type	Emitted By	Key Fields
splitter_flush	SplittingBatchProcessor	wave_size, emitted_rows, bucket_min, bucket_p50, bucket_max, buffered_before, table_size, dt_ms
parallel_wave_done	ParallelBatchProcessor	buckets, rows, max_workers, prefetch, dt_ms
bucket_done	ParallelBatchProcessor	rows, dt_ms
cypher_tx_done	CypherBatchSink	rows, dt_ms
csv_read_batch	CSVBatchSource	rows, dt_ms
parquet_read_batch	ParquetBatchSource	rows, dt_ms
sql_read_batch	SQLBatchSource	rows, dt_ms
cypher_read_batch	CypherBatchSource	rows, dt_ms
csv_write_batch	CSVBatchSink	rows, dt_ms
sql_write_batch	SQLBatchSink	rows, dt_ms

The ETL_LIB_INSTRUMENT_SAMPLE value controls down-sampling. For example, a value of 10 writes every 10th event.
